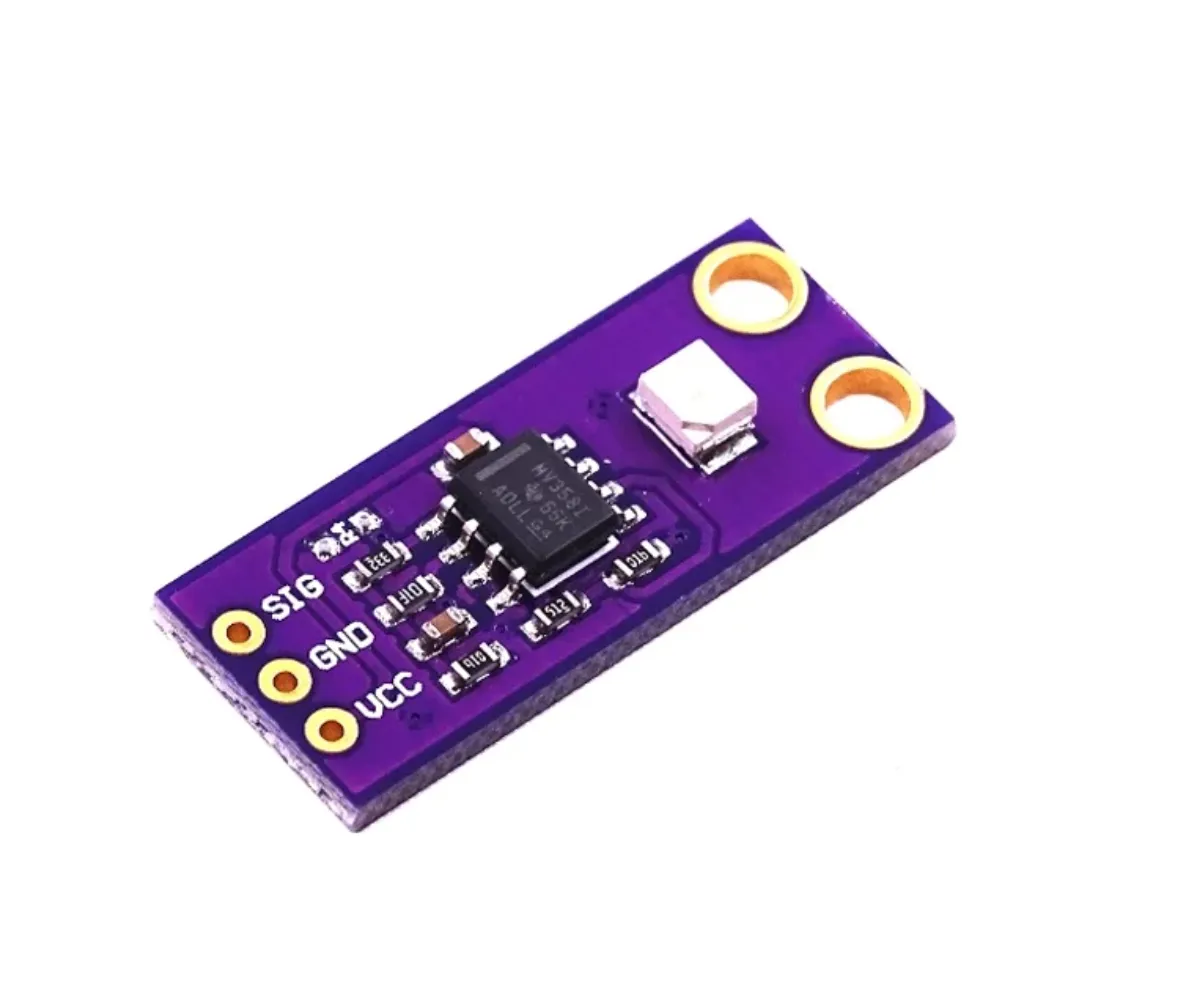

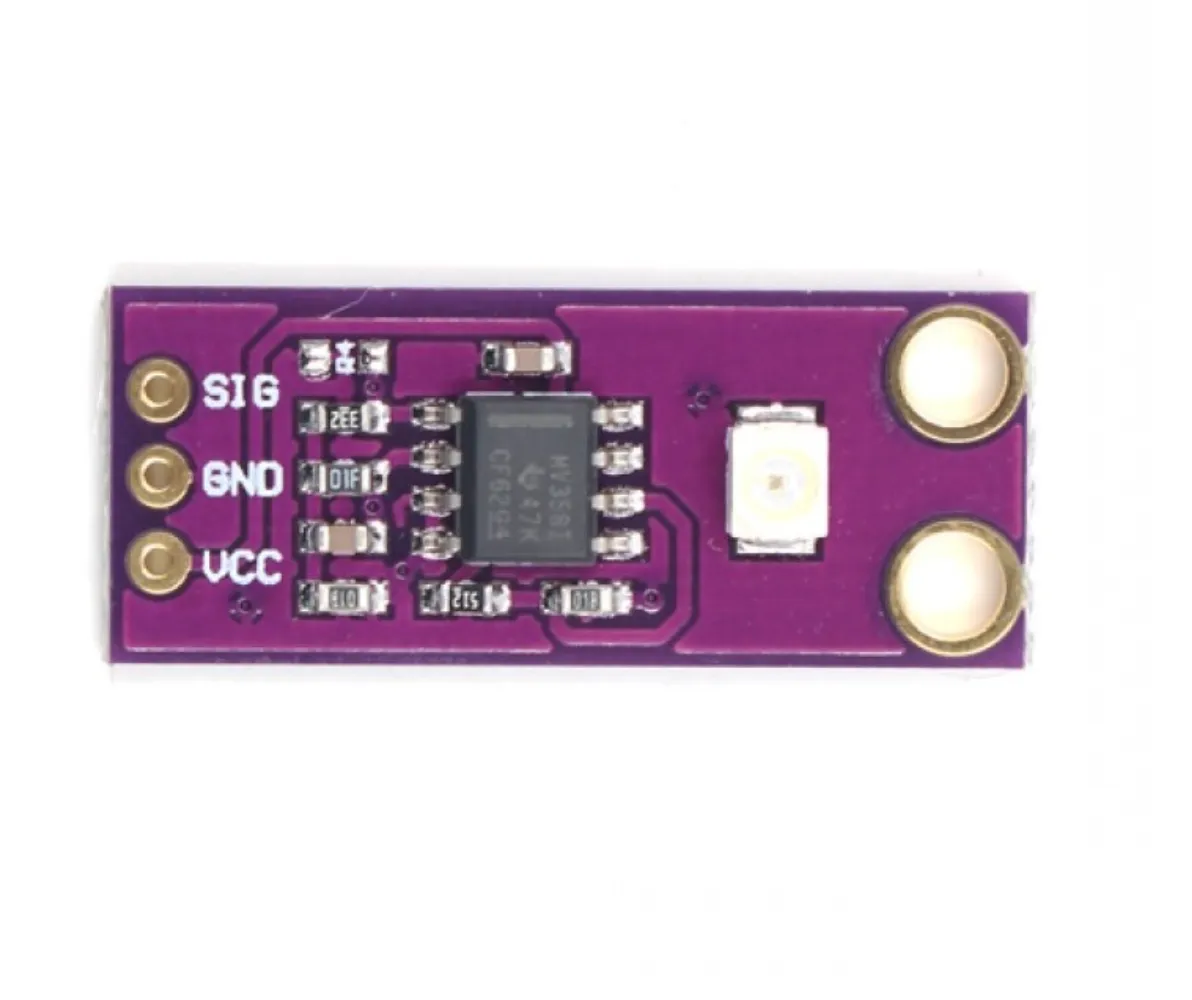

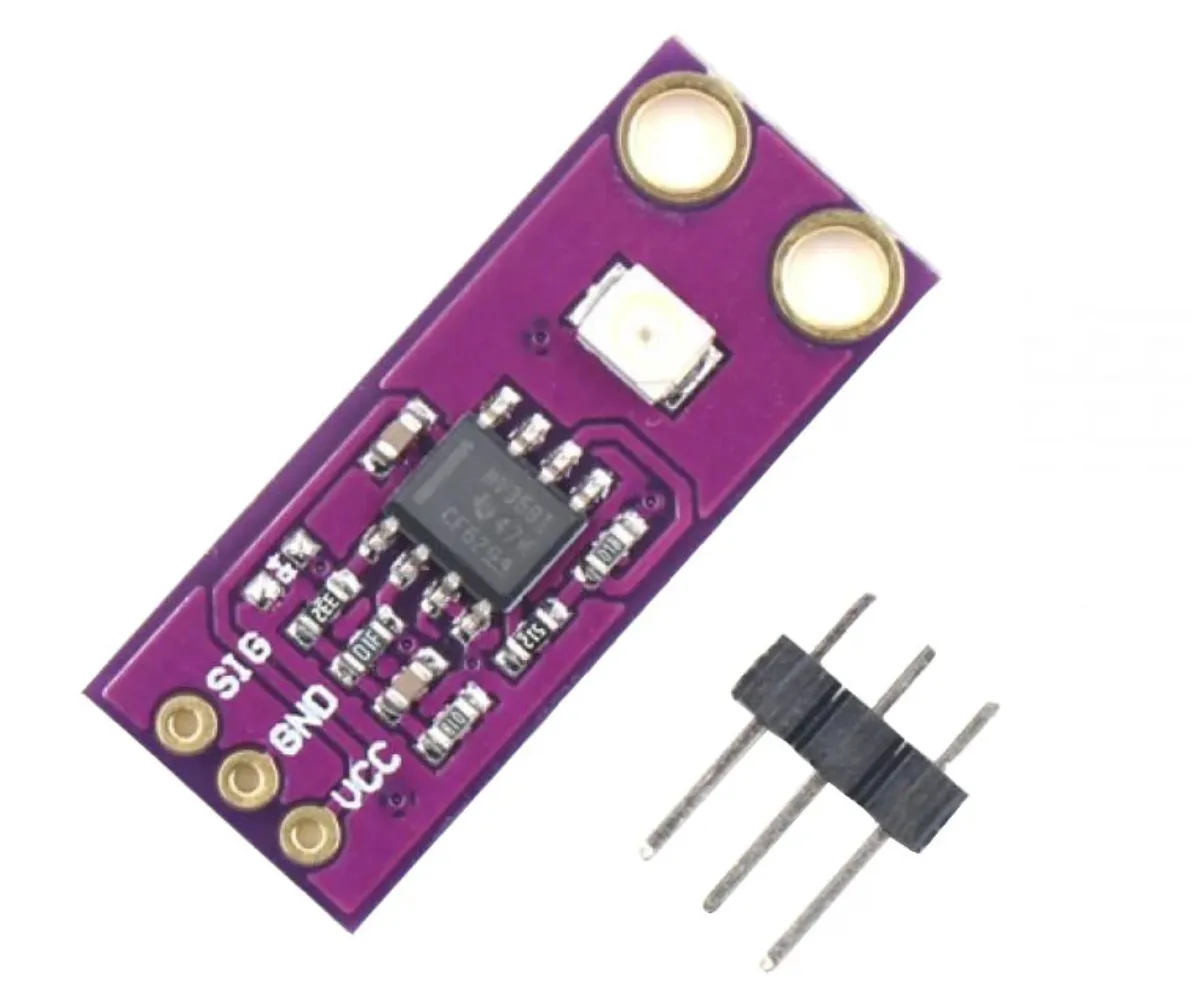

The GUVA-S12SD UV Sensor chip is suitable for detecting UV radiation in sunlight. It can be used in any application where you want to monitor the amount of UV light and is simple to connect to any microcontroller. I recently noticed that some sellers had little modules for this sensor at a reasonable price so decided to purchase one
Application:
Uv tester, UV watches, outdoor sports equipment, mobile phone, etc
Features:
- Low power consumption
- Power supply voltage of 2.5 V ~ 5 V
- working current is microamps.
- High sensitivity
- High stability
- Wide detection range: 240 nm to 370 nm
- Wide Angle: 130 degrees
- Schottky type photosensitive diode
- Size: 11 mm x 27 mm
Specifications:
| Power supply voltage |
2.5 V ~ 5 V |
| Wide detection range |
240 nm to 370 nm |
| Wide Angle |
130 degrees |
| Dimension(mm) |
11 x 27 |
| Shipment Weight |
0.008 kg |
| Shipment Dimensions |
8 × 5 × 1 cm |
